Brand£ºISARY
MODELS:
QB32 FUEL PUMP |
Hydraulic Data
| Gear size |
Nozzle pressure range |
Factory setting |
| 47/57 |
7-14 bars |
9 bars |
| 67 |
10-15bars |
10 bars |
| Operating viscosity |
2-12 mm2/s (cSt) |
| Oil temperature |
0-60ºC in the pump. |
| Inlet pressure |
2 bars max. |
| Return pressure |
2 bars max. |
| Suction height |
0.45 bars max. vacuum to prevent air separation from oil. |
| Rated speed |
3600 rpm max. (QB32) |
| Torque£¨£À45rpm) |
0.10 N.m £¨QB32£© |
Solenoid valve characteristics
| Voltage |
220-240v or 110-120 or 24v; 50/60 Hz. |
| Consumption |
9W |
| Ambient temperature |
0-60ºC |
| Maximum pressure |
25 bars | |

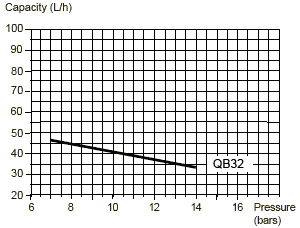

Pump Capacity |
 |

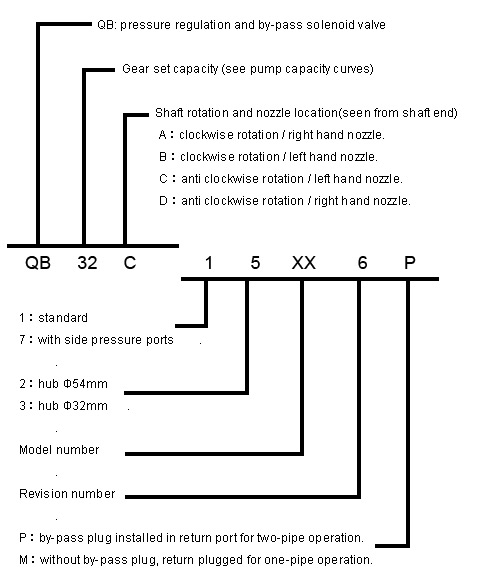

| Pump Identification |
 | |
|
|
